COATING SERVICES GROUP

Titanium Aluminum Nitride

TiAlN

titanium aluminum nitride sample photo

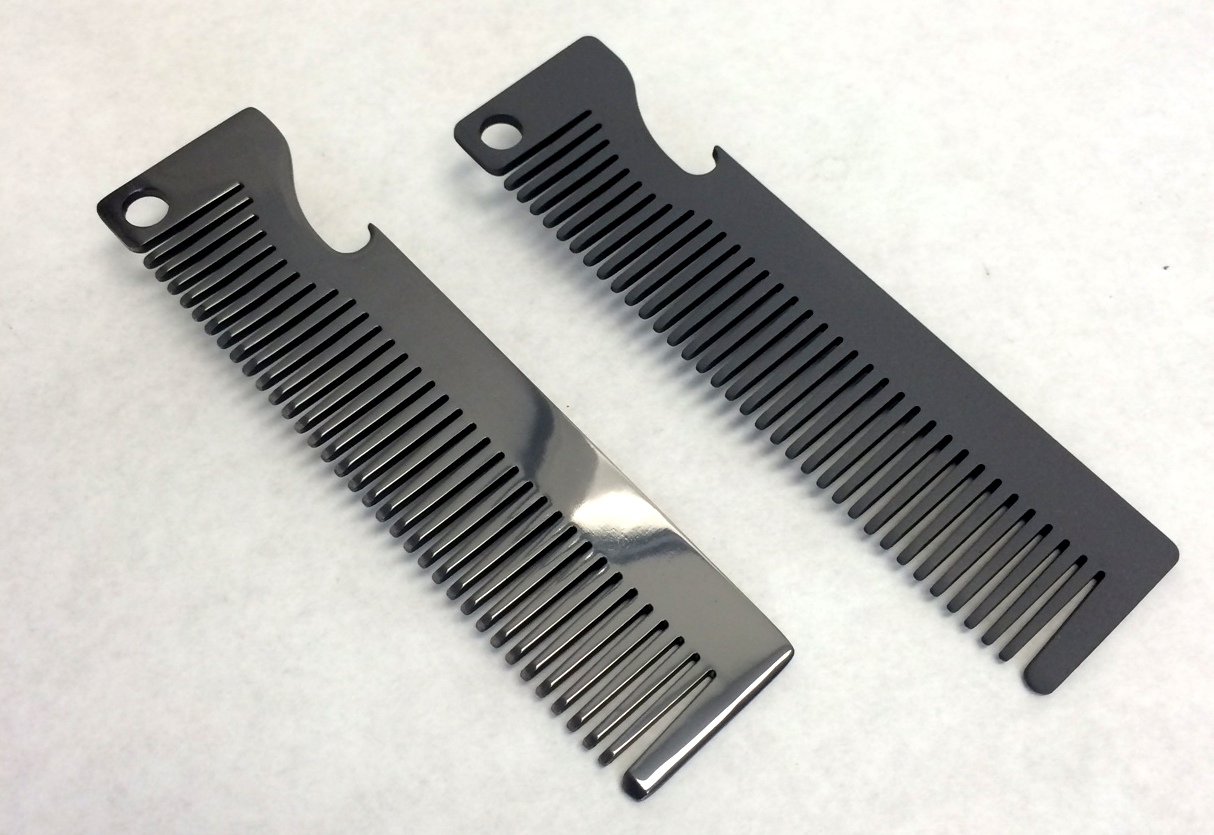

All of our coatings are conformal! Pictured above are two Metal Comb Works combs coated in TiAlN. One with a polished finish and the other with a matte finish.

All of our coatings are conformal! Pictured above are two Metal Comb Works combs coated in TiAlN. One with a polished finish and the other with a matte finish.

Color Range:  Light gray to charcoal gray

Thickness Range:  1 to 5 microns (~0.00004 to 0.0002”)

Hardness:  2700  to 3000 Hv (Vickers hardness)

Maximum Operating Temperature:  800º C (1450º F)

Lubricity:  0.6 coefficient of friction

Deposition Temperature:  350 to 500º C


Thermal Conductivity:  Low

Wear Resistance:  Excellent

Biocompatibility:  Marginal due to aluminum in coating

Structure:  Multilayer
